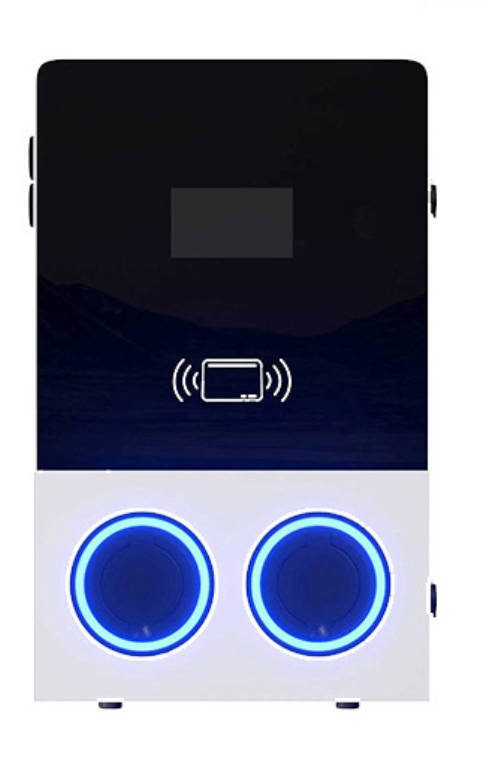

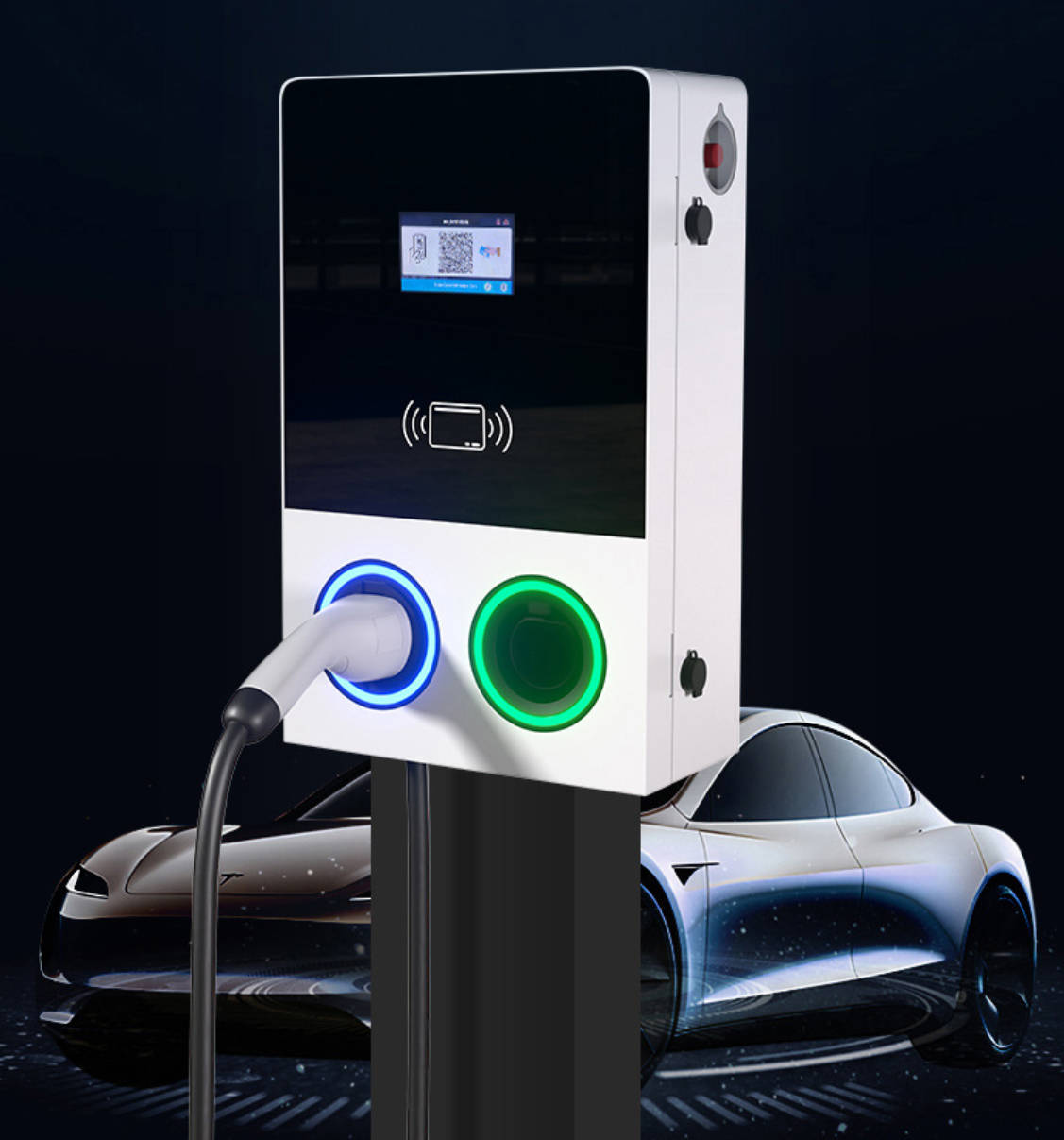

AC Wallbox EV Charger 14kW / 22kW / 44kW Dual Connectors

A high-power dual-connector AC wallbox EV charger with premium metal housing and tempered glass. Supports 14kW, 22kW and 44kW power configurations with dual charging ports. Features RFID, LCD display, Bluetooth, WiFi, 4G, Ethernet, OCPP 1.6J.

• ⚡ Flexible Power Options: Dual connector configurations - 14kW (32A single-phase at 240V), 22kW (16A three-phase at 380V), or 44kW (32A three-phase at 380V). Simultaneous charging of two vehicles with intelligent power distribution.
• 🔧 Premium Build Quality: Metal sheet + tempered glass housing, TPU flame retardant cables (premium grade), PC flame retardant connectors. IP55 protection, dimensions 315*245*105mm, operating temperature -25°C to 55°C.
• 🛡️ Comprehensive Safety Protection: Leakage, over voltage, low temperature, under voltage, over temperature, short circuit, surge, overload, overcurrent, and grounding protection. Compliant with IEC 61851-1:2017.
• 📡 Smart Connectivity: Bluetooth, WiFi, 4G, Ethernet, OCPP 1.6J protocol support.
• 🔌 Dual Connector Design: Charge two vehicles simultaneously with intelligent power distribution. Each port supports 7kW (14kW model), 11kW (22kW model), or 22kW (44kW model).
