CCS2 & Type 2 to CCS1 & Type 1 Charging Adapter - AC+DC 2 in 1

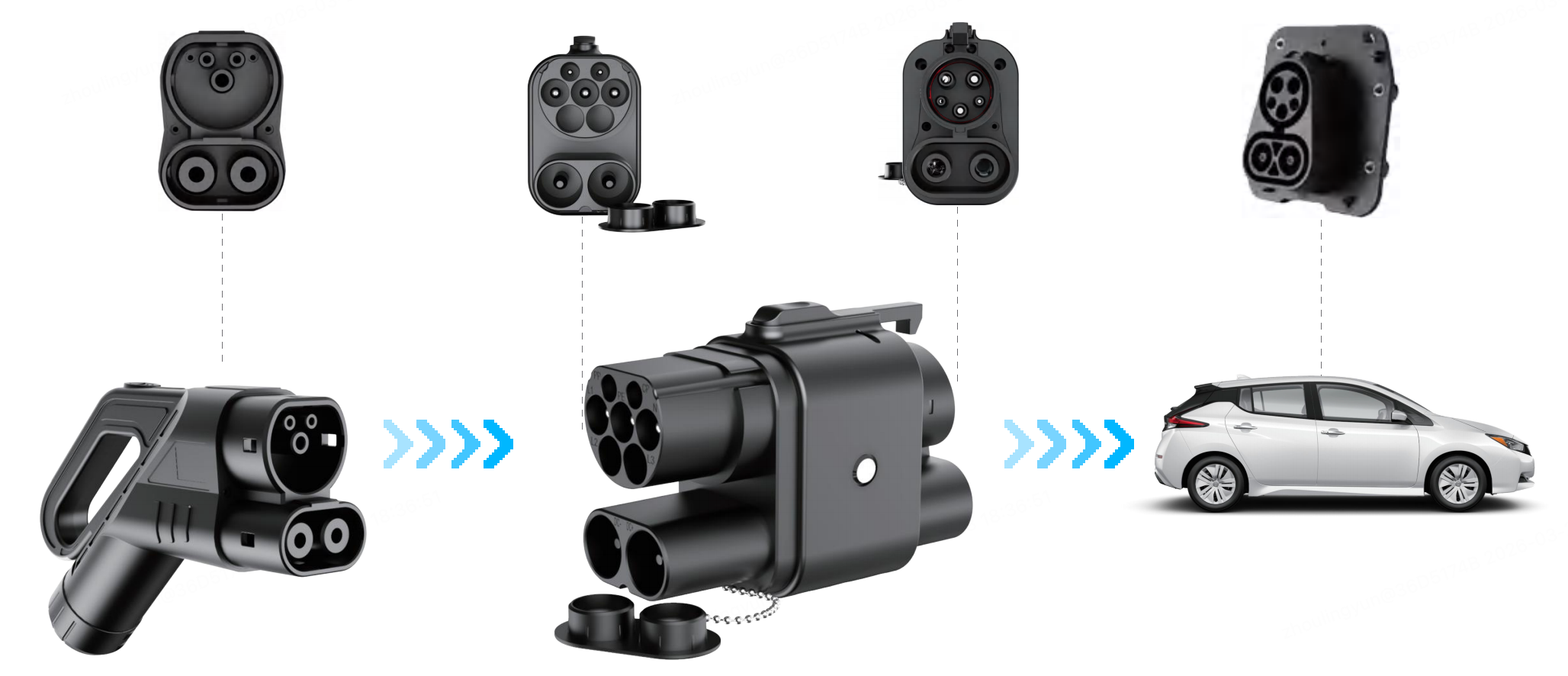

A versatile 2-in-1 charging adapter that enables CCS1/Type 1 (North American standard) EVs to charge at CCS2/Type 2 (European standard) charging stations. Supports both AC (Type 2 to Type 1) and DC (CCS2 to CCS1) charging with high power capacity up to 400A DC and 32A AC.
⚡ Dual Charging Mode Support: Supports both AC and DC charging in one compact adapter. DC Fast Charging: CCS2 to CCS1 conversion with max current 400A and voltage range 500-1000VDC. AC Charging: Type 2 to Type 1 conversion with max current 32A and voltage range 110V-250VAC.
🔧 Premium Build Quality: T2 Copper Alloy with silver plating for optimal conductivity and durability. PC (Polycarbonate) shell with UL94 V0 flame retardant rating. High-quality silicon rubber sealing gasket for reliable sealing.
🛡️ Safety & Protection: Built-in dual temperature kill switch with automatic charging stop when adapter reaches 90°C. IP54 protection rating against dust and water splashes, suitable for outdoor use in various weather conditions.
🌡️ Wide Operating Range: Operating temperature from 30°C to 50°C, storage temperature from -30°C to 85°C. Reliable performance in diverse climate conditions.
✅ International Certifications: FCC Certified compliant with Federal Communications Commission standards. RoHS Compliant, free from hazardous substances and environmentally friendly.
Technical Specifications:
DC Charging (CCS2 to CCS1):
Max Current: 400A
Voltage Range: 500-1000VDC
AC Charging (Type 2 to Type 1):
Max Current: 32A
Voltage Range: 110V-250VAC
Materials & Protection:
Conductor: T2 Copper Alloy, silver plated
Shell: PC (UL94 V0)
Protection Rating: IP54
Temperature & Certifications:
Operating Temp: 30°C to 50°C
Storage Temp: -30°C to 85°C
Certifications: FCC, RoHS
Applications:
Travel between North America and Europe with your EV
Use CCS1/Type 1 EVs at CCS2/Type 2 charging infrastructure
Fleet vehicles operating across different regions
EV rental and car-sharing services with diverse charging networks
Ready to Charge Across Continents?
Get the perfect 2-in-1 adapter solution for seamless charging between North American and European standards.
