DC Wallbox EV Charger 7kW / 15kW / 20kW / 30kW / 40kW

A high-power DC wallbox EV charger series offering multiple power options from 7kW to 40kW. Features 5-inch display, plug-and-charge, swipe card, APP control, OCPP protocol, and optional load balancing. Ideal for fixed residential, commercial, and fleet DC charging installations.

⚡ Multiple Power Options: Available in 7kW, 15kW, 20kW, 30kW, and 40kW configurations. Output voltage 50-750V (7kW) or 200-1000V (15kW-40kW). Output current up to 133A (40kW model).

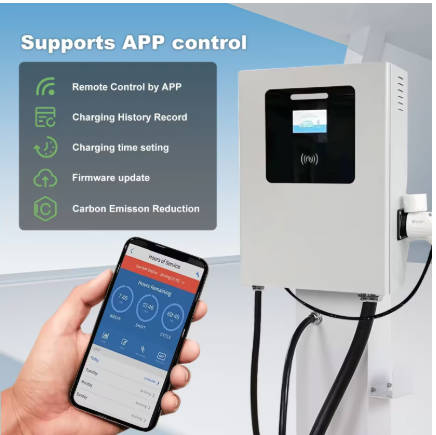

📱 5-inch Display & Multiple Control Options: Large 5-inch display with plug-and-charge, swipe card, APP control, and OCPP protocol support. Optional load balancing feature available.

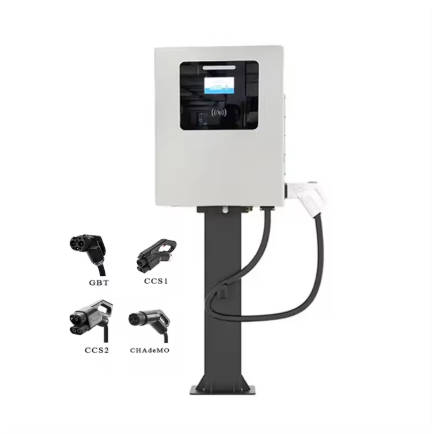

🔌 Multiple Charging Interfaces: Supports CCS1, CCS2, GB/T, and CHAdeMO connectors. 5M standard gun line length, customizable upon request.

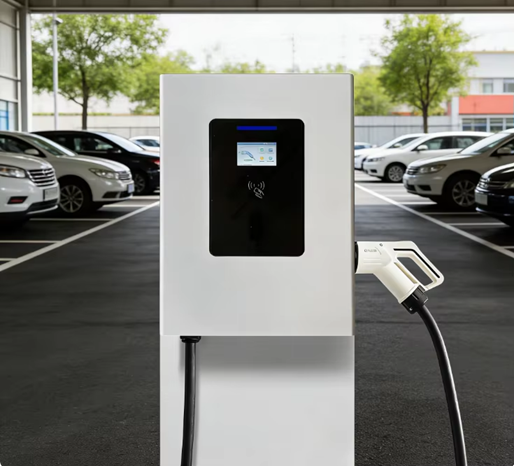

🏠 Wall-Mounted Design: Robust wall-mounted enclosure suitable for fixed residential, commercial, and fleet installations. IP54 rated for indoor/outdoor use.

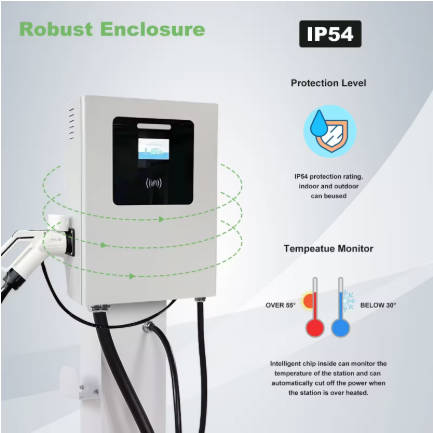

🛡️ Comprehensive Safety Protection: Overvoltage, Overcurrent, Overtemperature protection. IP54 rated for dust and water splash protection.
🌐 Wide Protocol Support: Compatible with GB/T 27930, CHAdeMO 2.0, DIN 70121, OCPP 1.6(JSON), and ISO 15118 protocols for broad EV compatibility.
⚡ Flexible Power Input: 7kW model supports single-phase 100-280V input. 15kW-40kW models support three-phase 280-500V input.

Power Configuration Options:

Choose the right power level for your specific charging requirements.

7kW Model:

Output: 50-750V DC, 0-20A
Input: 100-280V AC single-phase, 32A
Size: 450×340×165 mm
Gun Rated Current: ≤20A
Ideal for: Residential, light commercial

15kW Model:

Output: 200-1000V DC, 0-60A
Input: 280-500V AC three-phase, 32A
Size: 660×470×248 mm
Gun Rated Current: ≤50A
Ideal for: Commercial, fleet charging

20kW Model:

Output: 200-1000V DC, 0-60A
Input: 280-500V AC three-phase, 32A
Size: 660×470×248 mm, 61.1 KGS
Gun Rated Current: ≤67A
Ideal for: Commercial, fleet charging

30kW Model:

Output: 200-1000V DC, 0-100A
Input: 280-500V AC three-phase, 49A
Size: 660×540×280 mm, 73 KGS
Gun Rated Current: ≤100A
Ideal for: High-power commercial, fleet

40kW Model:

Output: 200-1000V DC, 0-133A
Input: 280-500V AC three-phase, 63A
Size: 660×540×280 mm, 87.8 KGS
Gun Rated Current: ≤133A
Ideal for: High-power commercial, fleet, public

Customization Options:

Configure your DC wallbox charger to match your specific requirements and regional standards.

Connector Types:

CCS1 - For North American DC EVs
CCS2 - For EU and IEC-based DC EVs
GB/T - For Chinese standard EVs
CHAdeMO - For Japanese standard EVs

Cable Configuration:

Gun Line Length: 5M standard (customizable)
Inlet Length: 0M standard (customizable)

Optional Features:

Load Balancing - Power management for multiple chargers
OCPP Integration - Network connectivity for charging management
