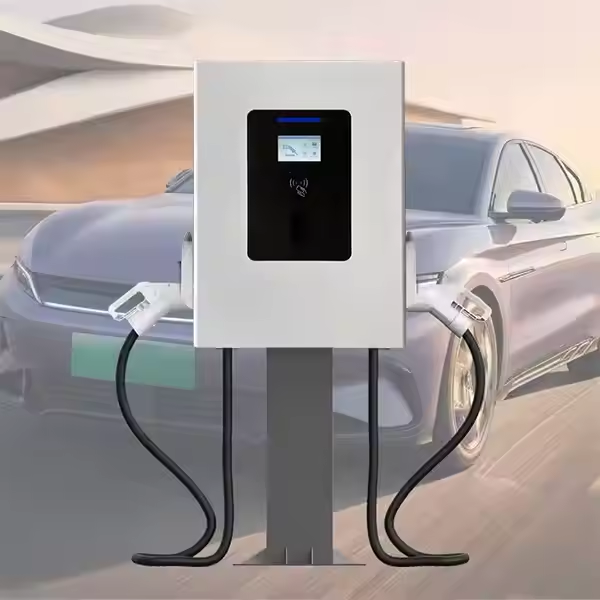

DC Wallbox EV Charger 40kW / 60kW / 80kW Dual Connectors

A high-power DC wallbox EV charger series with dual charging connectors, offering 40kW, 60kW, and 80kW power options. Features dual-port simultaneous charging, 5-inch displays, multiple control options, OCPP protocol, and optional load balancing. Ideal for commercial, fleet, and public DC charging stations requiring high throughput.

🔌 Dual Connector Design: Two independent DC charging ports with simultaneous charging capability. Intelligent power distribution between ports. Each port features independent 5-inch display and control.
⚡ Multiple Power Options: Available in 40kW, 60kW, and 80kW total power configurations. Output voltage 200-1000V DC. Dynamic power sharing between two charging ports.
📱 Smart Control & Management: Plug-and-charge, swipe card, APP control, and OCPP protocol support. Optional load balancing for multi-charger installations. Payment system integration ready.
🔋 Multiple Charging Interfaces: Supports CCS1, CCS2, GB/T, and CHAdeMO connectors. Mixed connector configuration available (different types per port). 5M standard gun line length, customizable.

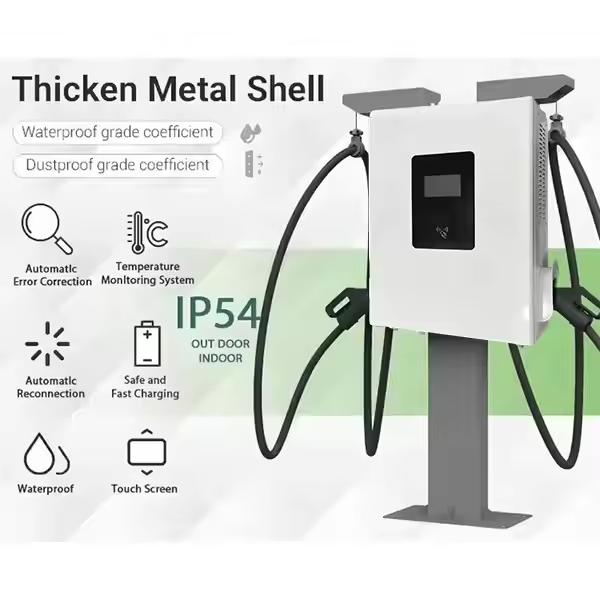

🛡️ Comprehensive Safety Protection: Overvoltage, Overcurrent, Overtemperature protection per port. Short circuit protection and emergency stop. IP54 rated for dust and water splash protection.
🌐 Wide Protocol Support: Compatible with GB/T 27930, CHAdeMO 2.0, DIN 70121, OCPP 1.6(JSON), and ISO 15118 protocols for broad EV compatibility.
⚡ Intelligent Power Management: Dynamic power sharing automatically optimizes power distribution. Peak shaving reduces demand charges. Energy management for cost optimization.

Power Configuration Options:

Choose the right power level for your commercial charging requirements.

40kW Model:

Total Output: 40kW (dual port)
Output Voltage: 200-1000V DC
Power Distribution: Dynamic sharing
Input: 280-500V AC three-phase
Ideal for: Small commercial, workplace

60kW Model:

Total Output: 60kW (dual port)
Output Voltage: 200-1000V DC
Power Distribution: Dynamic sharing
Input: 280-500V AC three-phase
Ideal for: Medium commercial, fleet

80kW Model:

Total Output: 80kW (dual port)
Output Voltage: 200-1000V DC
Power Distribution: Dynamic sharing
Input: 280-500V AC three-phase
Ideal for: High-traffic commercial, public

Dual Port Advantages:

Maximize your charging infrastructure investment with simultaneous dual-port charging.

Simultaneous Charging:

Charge two EVs at the same time
Independent control per port
Separate displays for each user
Individual billing and authentication

Intelligent Power Sharing:

Dynamic power distribution
Optimizes based on vehicle demand
Maximizes total throughput
Reduces installation costs

Customization Options:

Configure your dual-port DC wallbox charger to match your specific requirements.

Connector Types (Per Port):

CCS1 - For North American DC EVs
CCS2 - For EU and IEC-based DC EVs
GB/T - For Chinese standard EVs
CHAdeMO - For Japanese standard EVs
Mixed - Different connectors per port

Cable Configuration:

Gun Line Length: 5M standard (customizable)
Inlet Length: 0M standard (customizable)
Independent cable management per port

Optional Features:

Load Balancing - Power management for multiple chargers
OCPP Integration - Network connectivity for charging management
Payment System - Integration with various payment platforms
