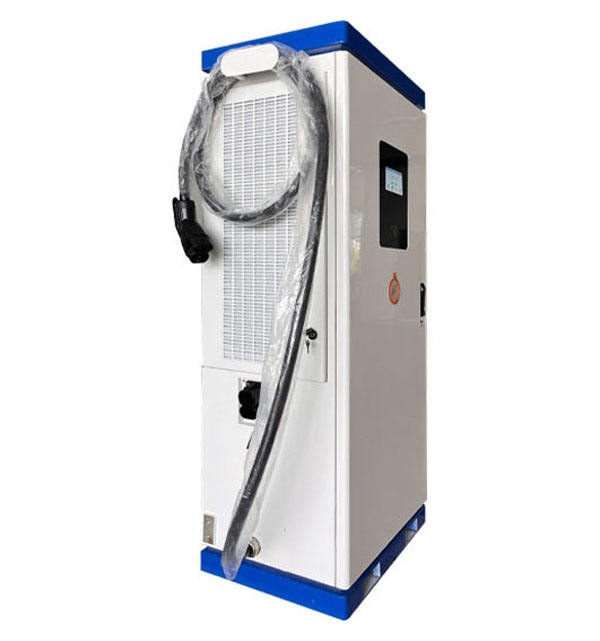

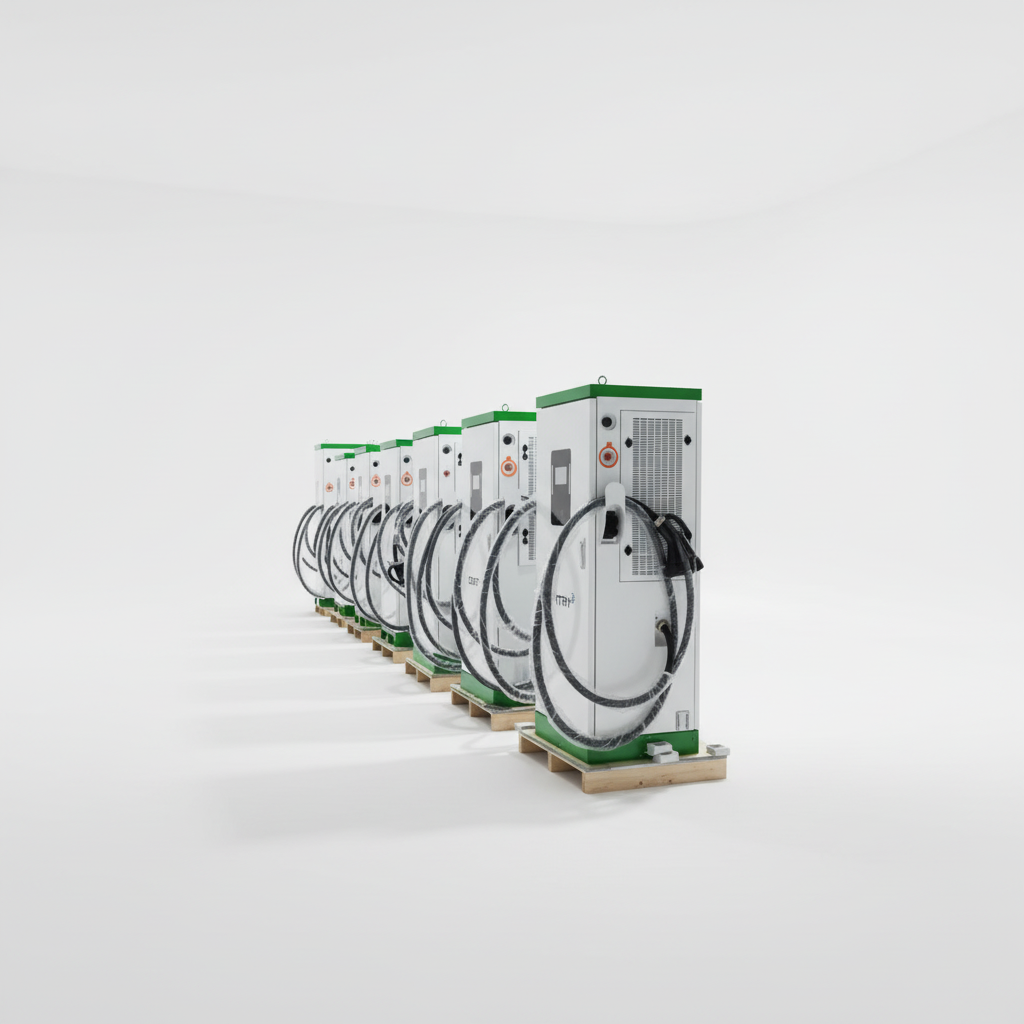

DC Super Charge Station 240kW / 300kW / 320kW / 360kW / 400kW Dual Connector

Ultra-high power supercharging station with dual connectors. Five power options up to 400kW. Multiple color choices. Optional APP, OCPP, Load Balancing, and AD Display.

  • ⚡ Ultra-High Power: 240kW to 400kW configurations. Output 150-1000V DC. Industry-leading charging speeds for premium supercharging networks.
  • 🔌 Dual Connector Flexibility: Two independent ports supporting GBT, CCS1, Type1, CCS2, Type2, NACS, CHAdeMO. Mix different connectors per port.
  • 🎨 Color Options: Available in Gray, Blue, and Red. Match your brand or environment with customizable aesthetics.
  • 📱 Optional Smart Features: APP Control, OCPP Protocol, Load Balancing, and AD Display. Configure based on your network needs.

⚡ Super Power Options

  • 240kW: 300A output, 410A input, 395.4 KGS
  • 300kW: 350A output, 536A input, 464.4 KGS
  • 320kW: 350A output, 572A input
  • 360kW: 350A output, 643A input
  • 400kW: 350A output, 715A input - Industry-leading power

✨ Optional Features

  • APP Control: Mobile app for remote monitoring, control, and user management
  • OCPP Protocol: Open Charge Point Protocol for network integration and backend management
  • Load Balancing: Intelligent power distribution between two ports for optimal efficiency
  • AD Display: Large advertising display screen for streaming media ads and revenue generation

Color Options:

Choose the perfect color to match your brand identity or installation environment.

Gray
Blue
Red

Available Connector Types:

Mix and match different connector types on each port to serve diverse EV fleets.

GBTChinese DC
CCS1North American DC
Type1North American AC
CCS2European DC
Type2European AC
NACSTesla Standard
CHAdeMOJapanese DC

Ready for Premium Supercharging?

Get the ultimate DC super charge station with industry-leading power output and flexible configuration options.

Contact Us
