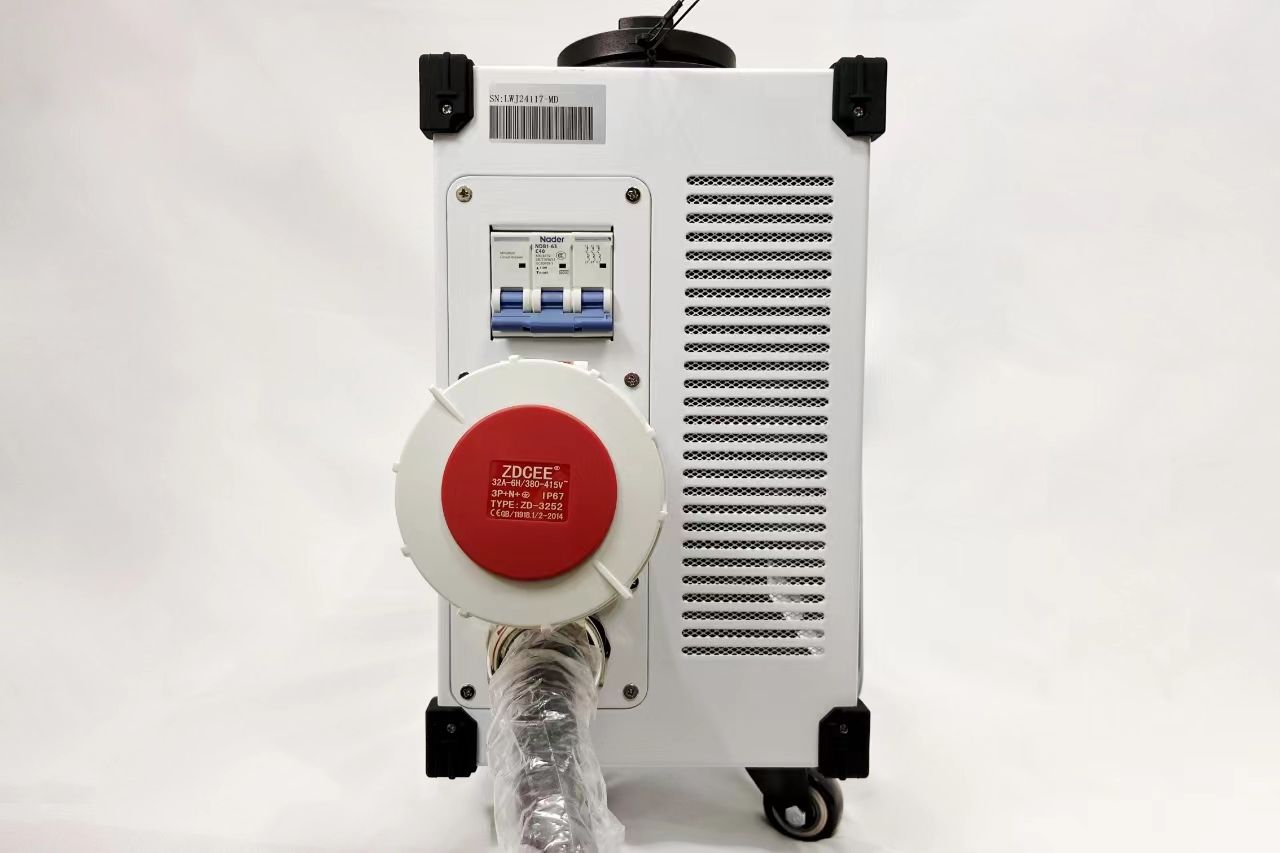

DC Portable EV Charger 7kW/15kW/20kW/30kW/40kW - Main Image

DC Portable EV Charger 7kW / 15kW / 20kW / 30kW / 40kW

A high-power portable DC EV charger series offering multiple power options from 7kW to 40kW. Features 5-inch display, plug-and-play operation, APP control (optional), and multiple charging protocols. Ideal for portable DC fast charging applications.

⚡ Multiple Power Options: Available in 7kW, 15kW, 20kW, 30kW, and 40kW configurations. Output voltage 50-750V (7kW) or 200-1000V (15kW-40kW). Output current up to 133A (40kW model).
⚡ Flexible Power Input: 7kW model supports single-phase 100-280V input. 15kW-40kW models support three-phase 280-500V input.
📱 5-inch Display & Smart Control: Large 5-inch display for clear charging status. Plug-and-play operation with optional APP control for remote monitoring.
🛡️ Comprehensive Safety Protection: Overvoltage, Overcurrent, Overtemperature protection. IP54 rated for dust and water splash protection.
🌐 Wide Protocol Support: Compatible with GB/T 27930, CHAdeMO 2.0, DIN 70121, OCPP 1.6(JSON), and ISO 15118 protocols for broad EV compatibility.
🔋 Portable Design: Compact size from 450×310×150mm (7kW) to 550×370×210mm (40kW). Weight from 37.1 KGS to 60 KGS. Suitable for mobile charging services.

Power Configuration Options:

Choose the right power level for your specific charging requirements.

7kW Model:

Output: 50-750V DC, 0-20A
Input: 100-280V AC single-phase, 32A
Size: 450×310×150 mm, 37.1 KGS
Ideal for: Light commercial, residential

15kW Model:

Output: 200-1000V DC, 0-60A
Input: 280-500V AC three-phase, 32A
Size: 530×320×200 mm, 43.55 KGS
Ideal for: Commercial, fleet charging

20kW Model:

Output: 200-1000V DC, 0-60A
Input: 280-500V AC three-phase, 32A
Size: 530×320×200 mm, 45 KGS
Ideal for: Commercial, fleet charging

30kW Model:

Output: 200-1000V DC, 0-100A
Input: 280-500V AC three-phase, 49A
Size: 550×370×210 mm, 50 KGS
Ideal for: High-power commercial, fleet

40kW Model:

Output: 200-1000V DC, 0-133A
Input: 280-500V AC three-phase, 63A
Size: 550×370×210 mm, 60 KGS
Ideal for: High-power commercial, fleet

Customization Options:

Configure your DC portable charger to match your specific requirements and regional standards.

Connector Types:

CCS1 - For North American DC EVs
CCS2 - For EU and IEC-based DC EVs
GB/T - For Chinese standard EVs
CHAdeMO - For Japanese standard EVs

Cable Configuration:

Gun Line Length: 5M standard (customizable)
Inlet Length: 0M standard (customizable)
