DC Portable EV Charger 20kW / 30kW / 40kW with AC Input Socket

A high-power portable DC EV charger series featuring dual AC input capability - supports both direct wiring connection and AC input socket for connecting to other AC charging stations. Users can choose either input method as needed. Available in 20kW, 30kW, and 40kW power options with 5-inch display and multiple charging protocols.

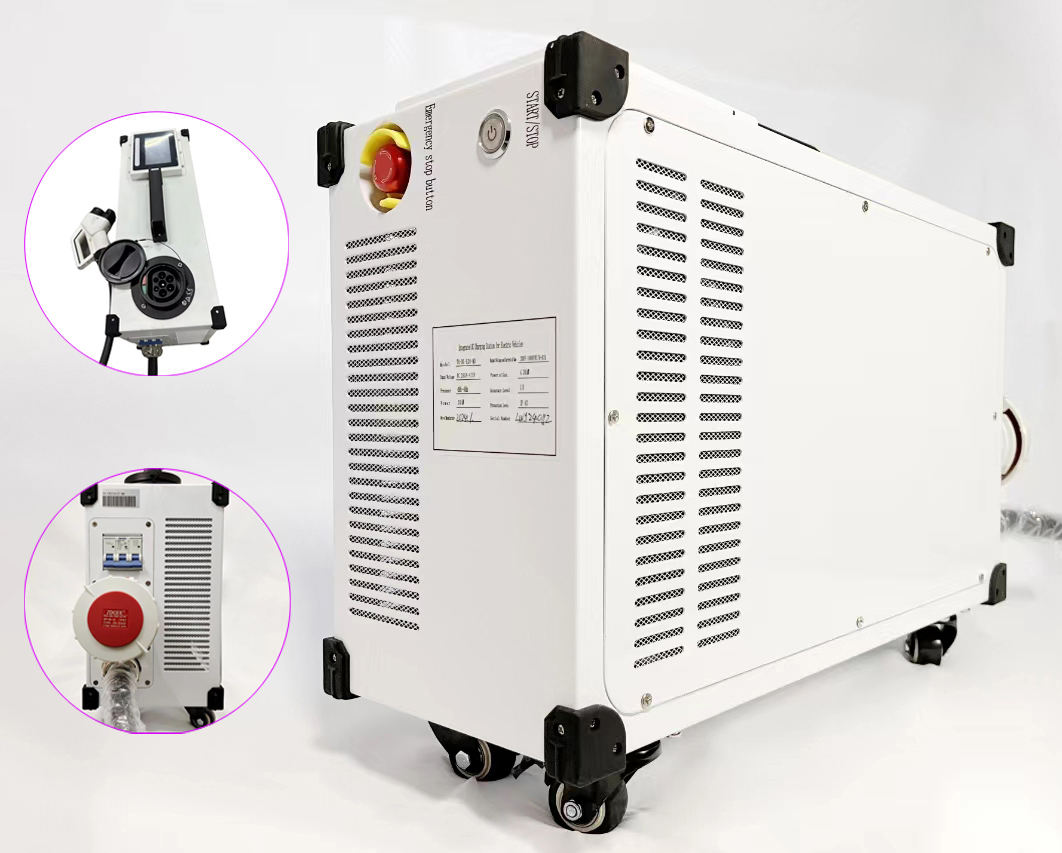

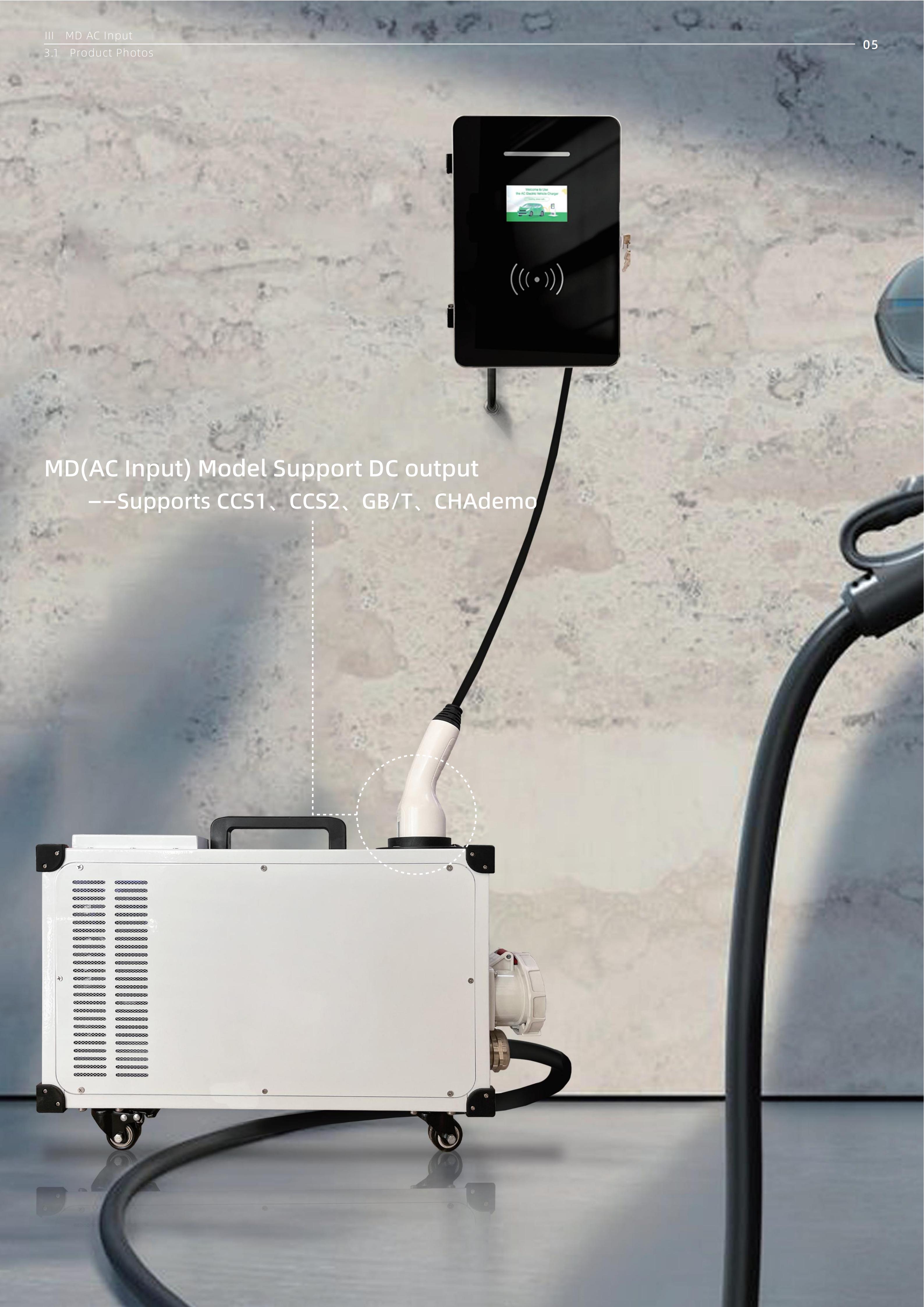

🔌 Dual AC Input Capability: Simultaneously supports two AC input methods - direct wiring connection (3P+N+PE) and AC input socket for connecting to other AC charging stations' charging gun. Users can freely choose either input method based on their needs. AC socket rated 32A (20kW) or 63A (30kW/40kW).
⚡ Multiple Power Options: Available in 20kW, 30kW, and 40kW configurations. Output voltage 200-1000V DC. Output current up to 133A (40kW model).

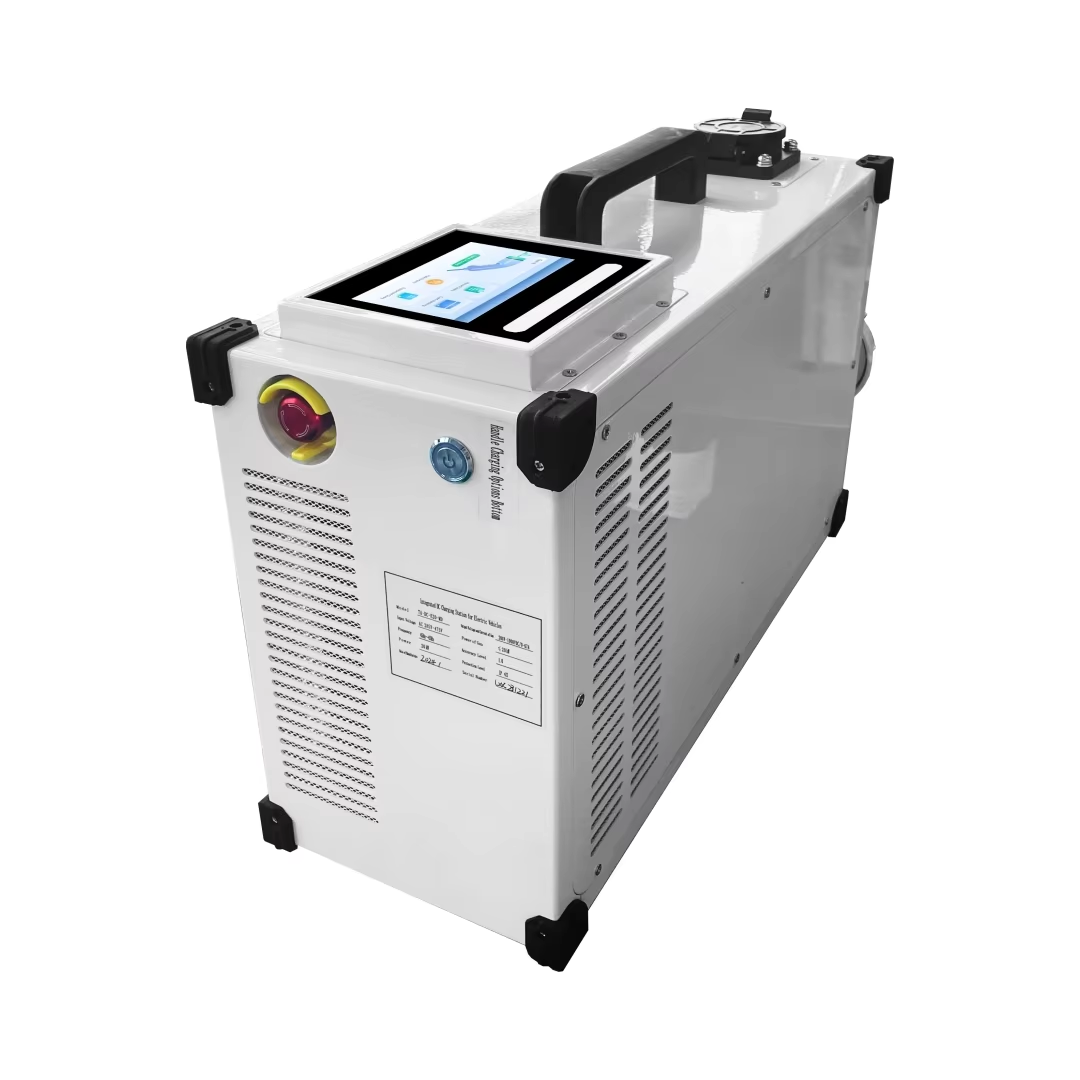

📱 5-inch Display & Smart Control: Large 5-inch display for clear charging status. Plug-and-play operation with optional APP control for remote monitoring.
🔋 Multiple Charging Interfaces: Supports CCS1, CCS2, GB/T, and CHAdeMO connectors. 5M standard gun line length, customizable upon request.
🛡️ Comprehensive Safety Protection: Overvoltage, Overcurrent, Overtemperature protection. IP54 rated for dust and water splash protection.
🌐 Wide Protocol Support: Compatible with GB/T 27930, CHAdeMO 2.0, DIN 70121, OCPP 1.6(JSON), and ISO 15118 protocols for broad EV compatibility.

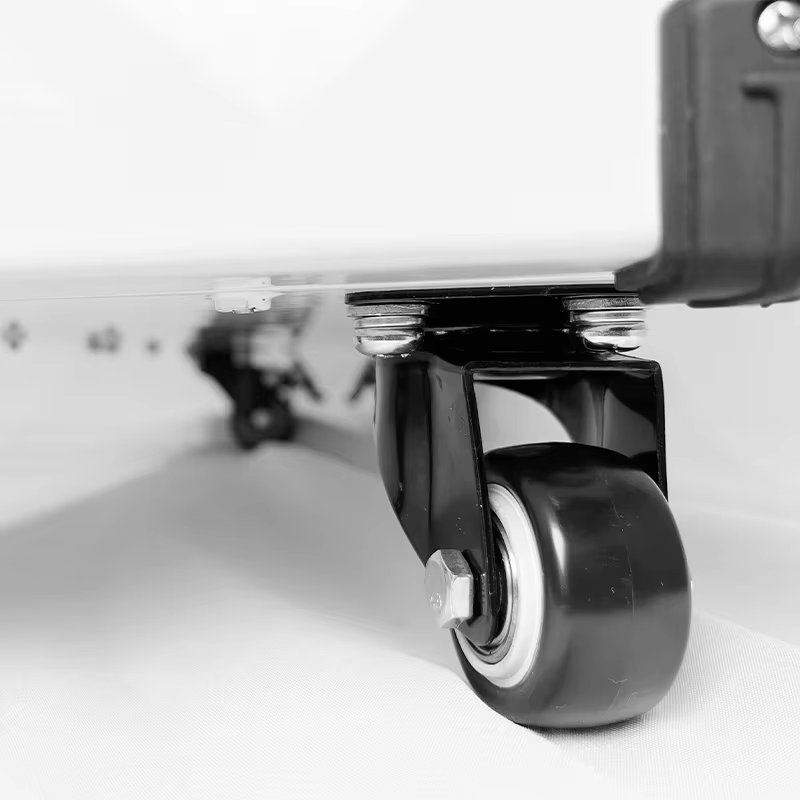

🔋 Portable Design: Compact size from 560×310×200mm (20kW) to 540×660×280mm (30kW/40kW). Weight from 43.6 KGS to 70.3 KGS. Suitable for mobile charging services.

Power Configuration Options:

Choose the right power level for your specific charging requirements.

20kW Model:

Output: 200-1000V DC, 0-60A
Input: 280-500V AC three-phase, 32A
AC Input Socket: 32A rating
Size: 560×310×200 mm, 43.6 KGS
Gun Rated Current: ≤63A

30kW Model:

Output: 200-1000V DC, 0-100A
Input: 280-500V AC three-phase, 49A
AC Input Socket: 63A rating
Size: 540×660×280 mm, 50 KGS
Gun Rated Current: ≤125A

40kW Model:

Output: 200-1000V DC, 0-133A
Input: 280-500V AC three-phase, 63A
AC Input Socket: 63A rating
Size: 540×660×280 mm, 70.3 KGS
Gun Rated Current: ≤125A

Customization Options:

Configure your DC portable charger to match your specific requirements and regional standards.

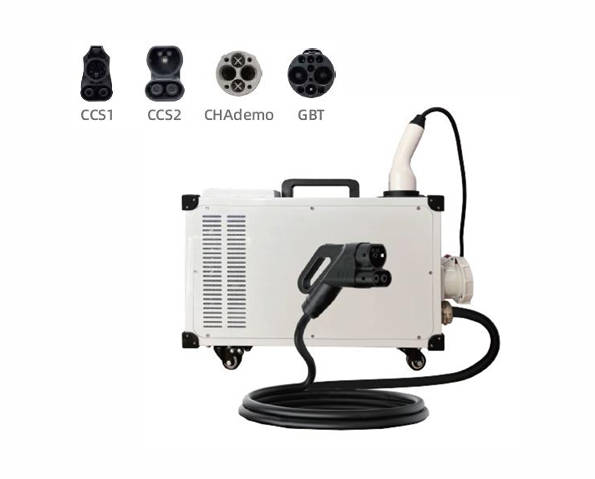

Connector Types:

CCS1 - For North American DC EVs
CCS2 - For EU and IEC-based DC EVs
GB/T - For Chinese standard EVs
CHAdeMO - For Japanese standard EVs

Cable Configuration:

Gun Line Length: 5M standard (customizable)
Inlet Length: 0M standard (customizable)
