DC Fast Portable Charge Station 40kW / 60kW / 80kW

Portable DC fast charging station with customizable input plug, cable lengths, and connector types. 7-inch display with optional APP control and OCPP protocol support.

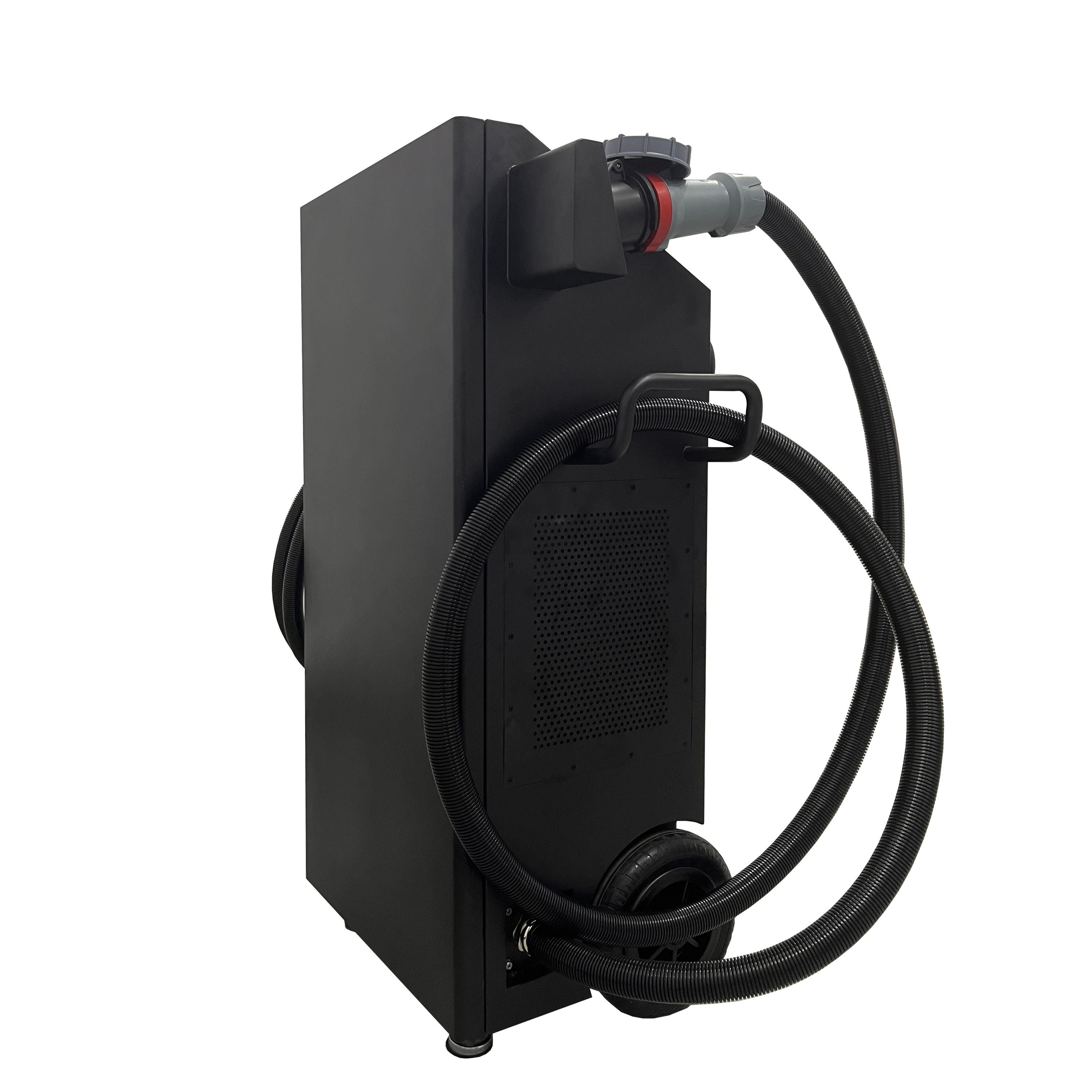

🚛 Portable Design: Wheeled mobile unit (923×620×1325 mm) for easy deployment. Plug-and-play operation without complex installation.
⚡ Multiple Power Options: 40kW, 60kW, 80kW configurations. Output 200-1000V DC. High-power DC fast charging on the go.
🔧 Fully Customizable: Input plug type, input cable length, gun line length, and connector type (GBT/CCS1/CCS2/CHAdeMO) all customizable.
📱 7-inch Display & Smart Control: Large touch display. Swipe card, APP control (Optional), OCPP protocol support (Optional).
🔋 Single Port High Power: Focused high-power output for efficient charging of one vehicle at a time.
🛡️ Safety Protection: Overvoltage, Overcurrent, Overtemperature, Short Circuit, Emergency Stop. IP54 rated.
🌐 Protocol Support: GB/T 27930, CHAdeMO 2.0, DIN 70121, OCPP 1.6 (Optional), ISO 15118.

🔧 Customization Options

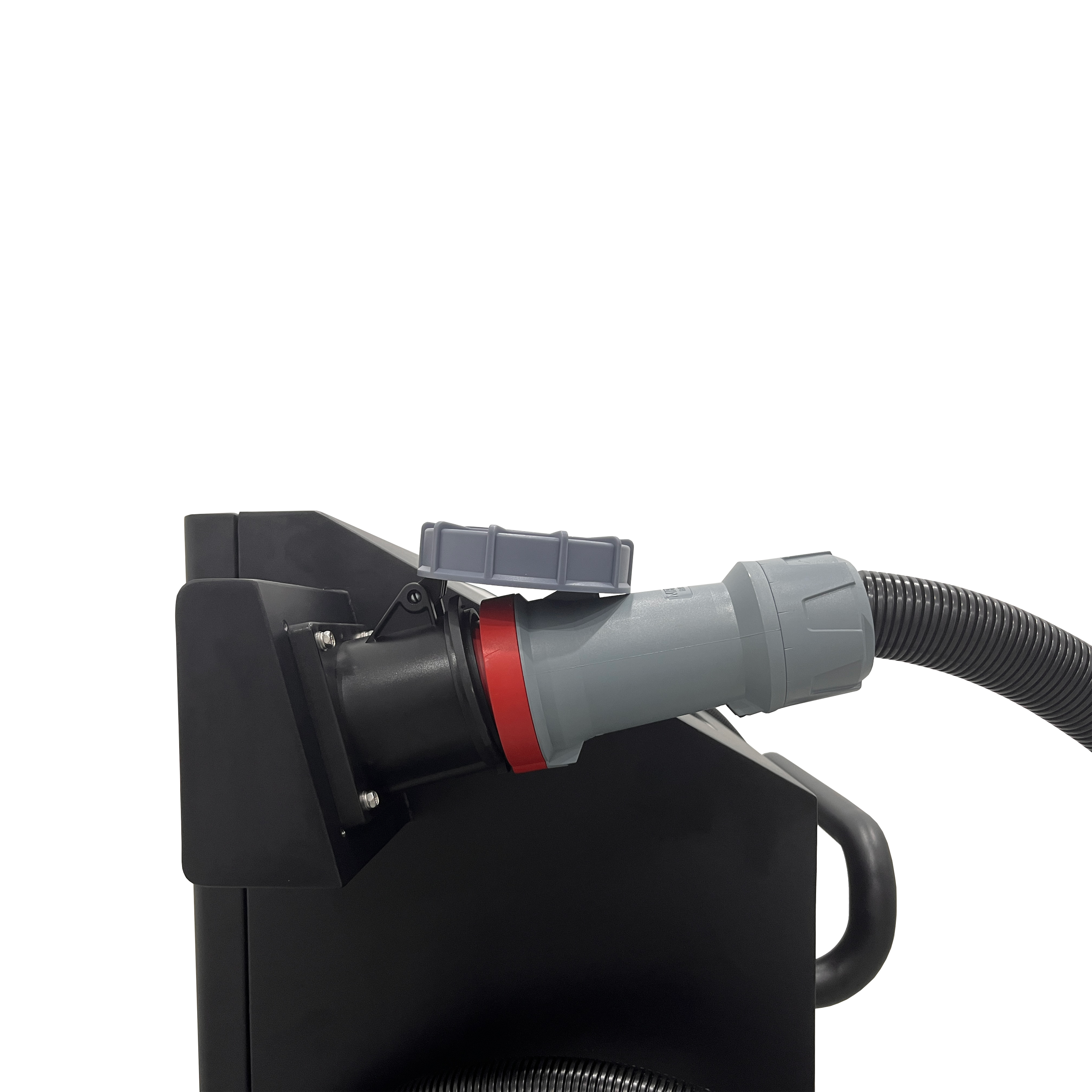

Input Plug Type: Customizable to match your regional power standards and requirements
Input Cable Length: Default 0M, fully extendable based on your deployment needs
Gun Line Length: 5M standard, customizable to your specific requirements
Connector Type: Choose from GBT, CCS1, CCS2, or CHAdeMO based on your target market

Available Connector Types:

Choose the connector type that matches your market requirements.

GBTChinese Standard

CCS1North American DC

CCS2European DC

CHAdeMOJapanese DC

Power Configuration Options:

40kW Model

Output: 200-1000V DC, 133A
Input: 285-475V AC, 63A
Gun Current: ≤133A

60kW Model

Output: 200-1000V DC, 200A
Input: 260-530V AC, 105A
Gun Current: ≤200A

80kW Model

Output: 200-1000V DC, 200A
Input: 260-530V AC, 130A
Weight: 116 KGS
