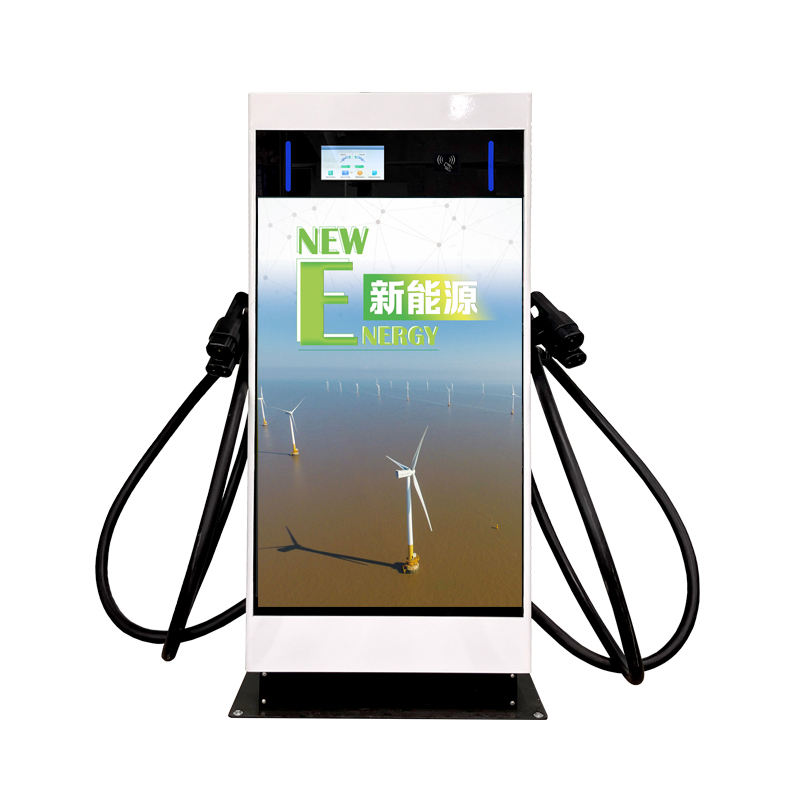

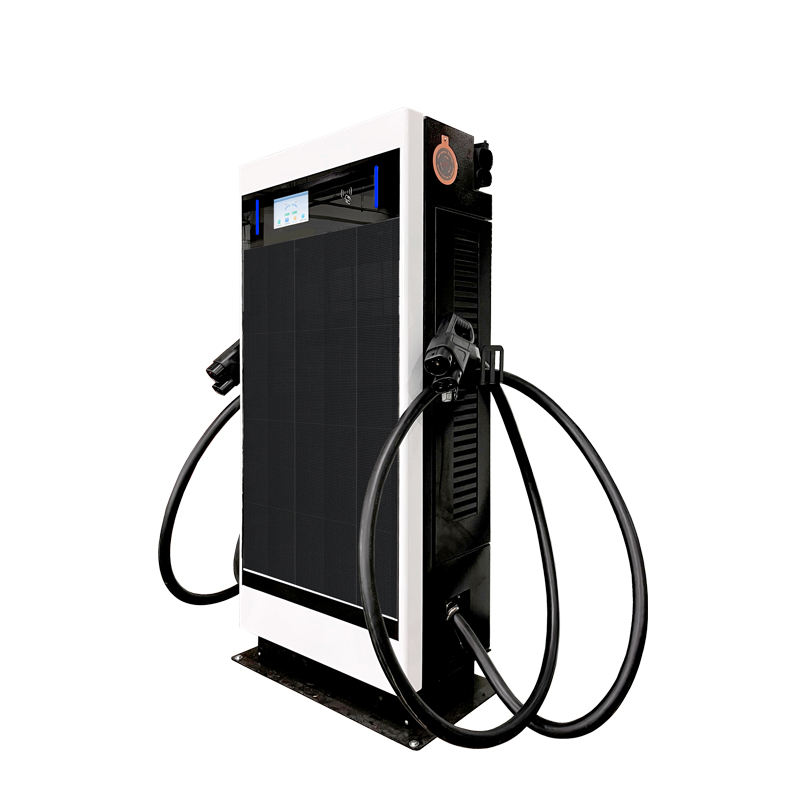

DC Fast Charge Station 40kW / 60kW / 80kW Dual Connector with AD Display

High-power dual-port DC fast charging station with flexible connector combinations and large streaming media advertising display for additional revenue generation.

🔌 Dual Connectors with Flexible Combinations: Two independent ports supporting GBT, CCS1, Type1, CCS2, Type2, NACS, CHAdeMO. Mix different connectors per port.
📺 Large Advertising Display: Integrated streaming media screen for video ads, remote content management, and revenue generation through ad placements.
⚡ Multiple Power Options: 40kW, 60kW, 80kW configurations. Output 200-1000V DC. Dynamic power sharing between ports.
📱 7-inch Display & Smart Control: Large touch display per port. Swipe card, APP control (Optional), OCPP protocol support (Optional).
🔋 Simultaneous Charging: Charge two EVs at once with different connector standards and independent control.
🛡️ Safety Protection: Overvoltage, Overcurrent, Overtemperature, Short Circuit, Emergency Stop. IP54 rated.
🌐 Protocol Support: GB/T 27930, CHAdeMO 2.0, DIN 70121, OCPP 1.6 (Optional), ISO 15118.
⚙️ Load Balancing (Optional): Intelligent power management across multiple chargers for optimized energy usage.

🎯 Advertising Display Features

High-Brightness Screen: Outdoor-visible display for maximum impact
Streaming Media Support: Play video advertisements and promotional content
Revenue Generation: Monetize your charging station through ad placements
Brand Promotion: Display your own brand or third-party advertisements

Flexible Connector Combinations:

Each port can be configured independently with any of these connector types. Mix and match to suit your needs.

GBTChinese Standard

CCS1North American DC

Type1Japanese Standard

CCS2European DC

Type2European AC

NACSTesla Standard

CHAdeMOJapanese DC

Example combinations: CCS1 + CCS2, GBT + CHAdeMO, NACS + Type2, etc.

Power Configuration Options:

40kW Model

Output: 200-1000V DC, 0-133A
Input: 285-475V AC, 63A
Weight: 198 KGS

60kW Model

Output: 200-1000V DC, 0-200A
Input: 260-530V AC, 105A
Weight: 205 KGS

80kW Model

Output: 200-1000V DC, 0-200A
Input: 260-530V AC, 130A
Weight: 242 KGS
