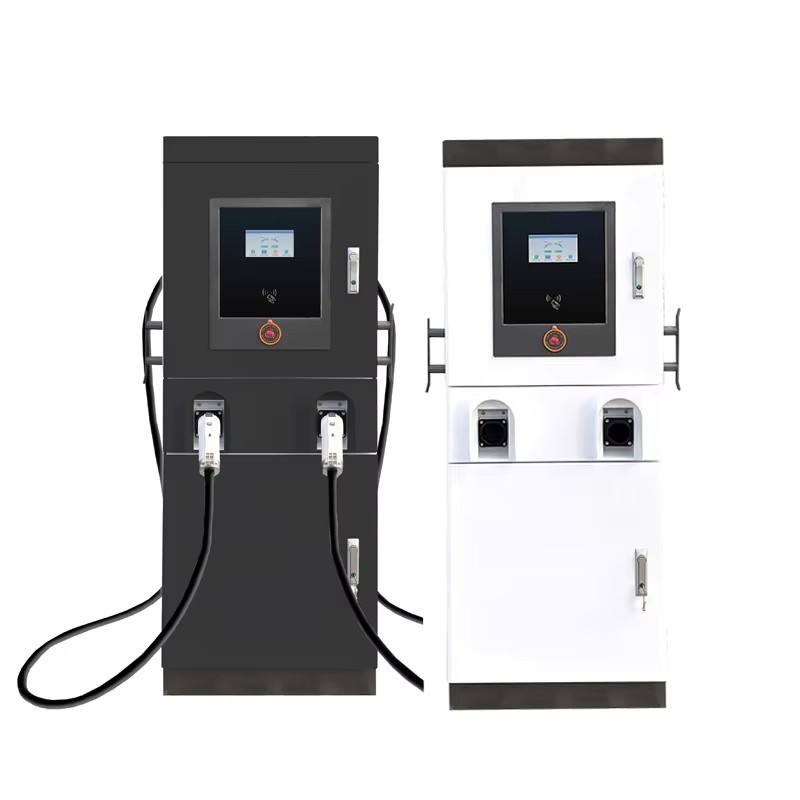

DC Fast Charge Station 120kW / 160kW / 180kW Dual Connector

Ultra-high power dual-port DC fast charging station with flexible connector combinations. Optional features: APP Control, OCPP Protocol, Load Balancing, AD Display.

⚡ Ultra-High Power: 120kW, 160kW, 180kW configurations. Output 200-1000V DC, 0-250A. For high-traffic commercial and fleet applications.
🔌 Dual Connector Flexibility: Two independent ports supporting GBT, CCS1, Type1, CCS2, Type2, NACS, CHAdeMO. Mix different connectors per port.
📱 Optional Smart Features: APP Control, OCPP Protocol, Load Balancing, and AD Display. Configure based on your needs.
📊 7-inch Displays: Real-time charging status, power, voltage, current monitoring.
⚖️ Load Balancing (Optional): Intelligent power distribution between ports for optimal charging efficiency.
📺 AD Display (Optional): Large advertising display for additional revenue generation and brand promotion.
🛡️ Safety Protection: Overvoltage, Overcurrent, Overtemperature, Short Circuit, Emergency Stop. IP54 rated.
🌐 Protocol Support: GB/T 27930, CHAdeMO 2.0, DIN 70121, OCPP 1.6 (Optional), ISO 15118.

✨ Optional Features

APP Control: Mobile app for remote monitoring, control, and user management
OCPP Protocol: Open Charge Point Protocol for network integration and backend management
Load Balancing: Intelligent power distribution between two ports for optimal efficiency
AD Display: Large advertising display screen for streaming media ads and revenue generation

Available Connector Types:

Mix and match different connector types on each port to serve diverse EV fleets.

GBTChinese DC

CCS1North American DC

Type1North American AC

CCS2European DC

Type2European AC

NACSTesla Standard

CHAdeMOJapanese DC

Power Configuration Options:

120kW Model

Output: 200-1000V DC, 0-250A
Input: 285-475V AC, 200A
Weight: 335.5 KGS

160kW Model

Output: 200-1000V DC, 0-250A
Input: 285-475V AC, 270A
Weight: 366 KGS

180kW Model

Output: 200-1000V DC, 0-250A
Input: 285-475V AC, 300A
Weight: 384 KGS
